Chemical threaded bolt 0

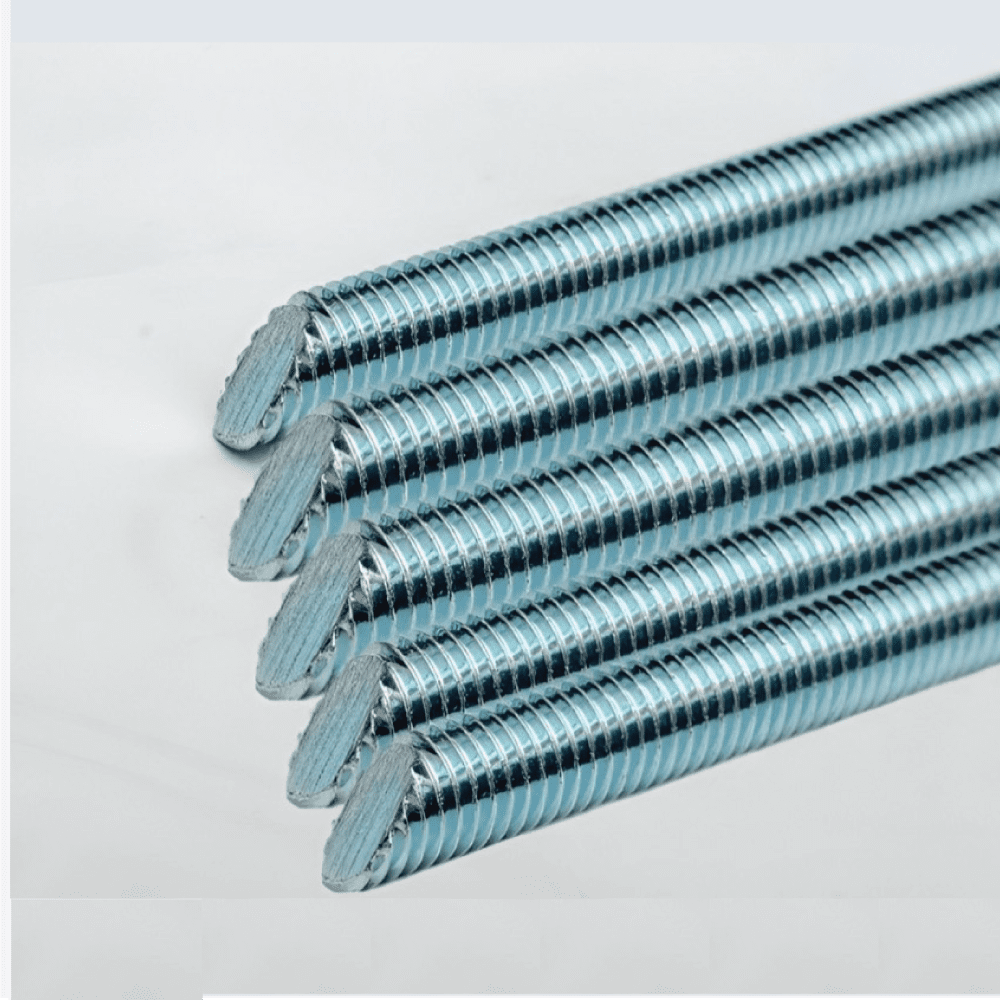

Chemical threaded bolt

  • Material SS400, S35C, S45C, SCM435H, SCM440H, SNB7
    Durability 4.8 and 6.8 (when required)
    Surface treatment Blue-White Zinc Plated
    Size M6~M24
    Length As per the request
    Quality assurance, fast delivery
    Competitive pricing
    Contact 0254 3893 111
Quantity
  Quote

TECHNICAL SPECIFICATIONS OF THE PRODUCT

M series

 Size  Thread pitch Tolerance Weight per 1000mm
Min Max
M6 1 5.59 5.97 0.163
M8 1.25 7.55 7.85 0.298
M10 1.5 9.5 9.85 0.472
M12 1.75 11.6 11.85 0.699
M14 2 13.6 13.85 0.963
M16 2 15.5 15.8 1.269
M18 2.5 17.33 17.95 1.597
M20 2.5 19.33 19.95 2.019
M22 2.5 21.33 21.95 2.490
M24 3 23.2 23.95 2.902


Advantages of the product


1. The product can be manufactured according to the required length (up to 3000 mm), eliminating the need for on-site cutting.

San pham nakaumi 1

2. The product is customized, eliminating the need for connectors. Therefore, unnecessary connection costs can be reduced.

San pham nakaumi 2

3. Since the surface already has a galvanized coating, the task of applying anti-rust paint is unnecessary.

San pham nakaumi 3

4. The product is packaged and weighs approximately 20kg. It is bundled and delivered, making it easy to transport to various construction sites.

San pham nakaumi 4
