Chemical threaded bolt stainless 0

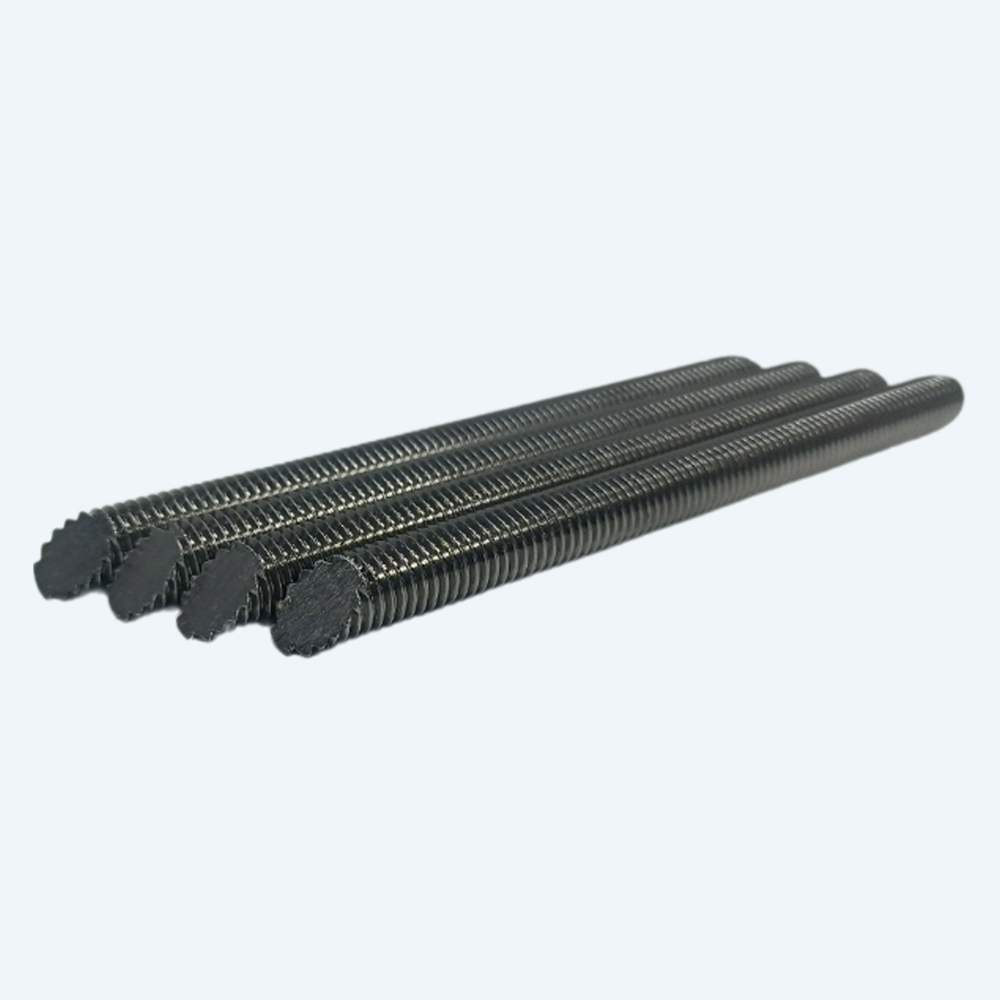

Chemical threaded bolt stainless

  • Material SUS 304, SUS 310, SUS 316, SUS403
    Strength 4.8 and 6.8 (upon request)
    Surface Treatment Plain
    Size M6~M24
    Length As per request
    Quality Assurance, Fast Delivery
    Competitive Prices
    Contact 0254 3893 111
Quantity
  Quote

TECHNICAL SPECIFICATIONS OF THE PRODUCT

M series

 Size  Thread pitch Tolerance Weight per 1000mm
Min Max
M6 1 5.59 5.97 0.172
M8 1.25 7.55 7.85 0.309
M10 1.5 9.5 9.85 0.488
M12 1.75 11.6 11.85 0.713
M14 2 13.6 13.85 0.980
M16 2 15.5 15.8 1.309
M18 2.5 17.33 17.95 1.634
M20 2.5 19.33 19.95 2.073
M22 2.5 21.33 21.95 2.553
M24 3 23.2 23.95 2.958


Advantages of the product


1. The product can be manufactured according to the required length (up to 3000 mm), eliminating the need for on-site cutting.

San pham nakaumi 1

2. The product is customized, eliminating the need for connectors. Therefore, unnecessary connection costs can be reduced.

San pham nakaumi 2

3. Since the surface already has a galvanized coating, the task of applying anti-rust paint is unnecessary.

San pham nakaumi 3

4. The product is packaged and weighs approximately 20kg. It is bundled and delivered, making it easy to transport to various construction sites.

San pham nakaumi 4
