Products

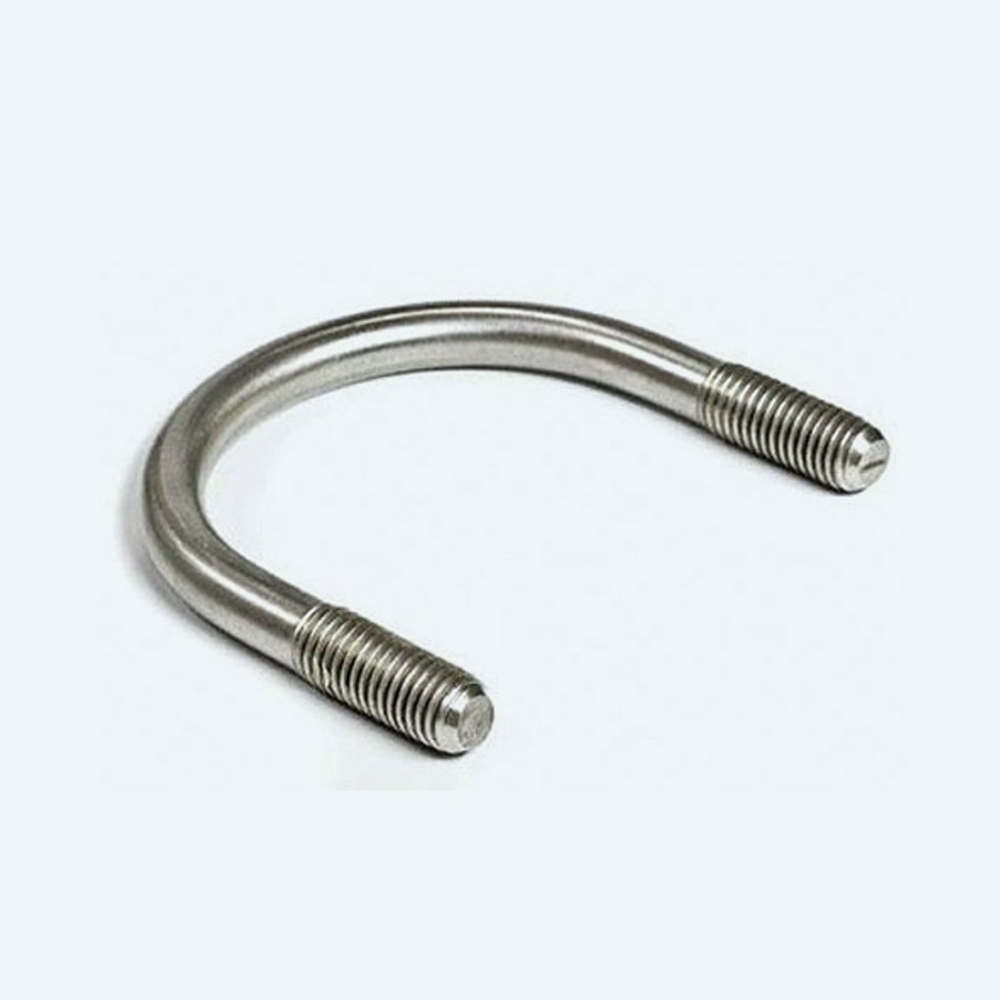

U-bolt

Material	SAE1008, SUS304
Strength	4.8
Surface treatment	Blue-White Zinc Plated, Clear
Size	M6 ~ M20
Thread length	According to standard
Quality assurance, fast delivery
Competitive price
Contact	0254 3893 111

Quote

Quantity

PRODUCT INFORMATION

Tube Size	Outer Tube Diameter	R	M6			M8			M10			M12			M16			M20
			W1/4			W5/16			W3/8			W1/2			W5/8			W3/8
			P	H	E	P	H	E	P	H	E	P	H	E	P	H	E	P	H	E
8A 1/4	13.2	7.5	21	27	15
10A 3/8	16.7	9.5	25	33	18	27	38	24	28	43	28
15A 1/2	21.2	12	29.5	36	18	31	42	24	34	46	30
20A 3/4	27.2	15	34	42	18	37	48	24	40	51	30
25A 1"	34	18	41	49	25	44	54	25	46	59	30	48	68	35
32A 1"1/4	42.7	23	50.5	57	25	52	62	30	56	68	30	57	70	35
40A 1"1/2	48.6	26	57	68	25	59	67	30	62	74	30	63	81	35
50A2"	60.5	32	70	80	30	72	80	30	74	85	30	76	90	35
65A 2"1/2	76.3	40	84	96	30	86	96	30	88	107	35	90	107	45
80A 3"	89.1	46	97	107	30	99	109	30	101	117	35	103	119	45
90A 3"1/2	101.6	52							115	132	35	116	131	45
100A 3"1/2	114.3	59							126	145	35	129	150	45	134	151	60
125A 5"	139.8	72							152	175	40	154	175	45	160	175	60
150A 6"	165.2	85							180	200	40	182	201	45	186	202	60	190	212	70
200A 8"	216.3	111										232	252	45	236	254	60	239	263	70
250A 10"	267.4	137										282	308	50	286	308	60	289	315	70
300A 12"	318.5	162										332	360	50	341	368	60	344	371	80
350A 14"	355.8	181													376	401	70	377	403	80
400A 16"	406.4	207													426	454	70	429	455	80
450A 18"	457.2	233													478	508	75	491	507	80
500A 20"	508	259													529	560	80	532	560	80

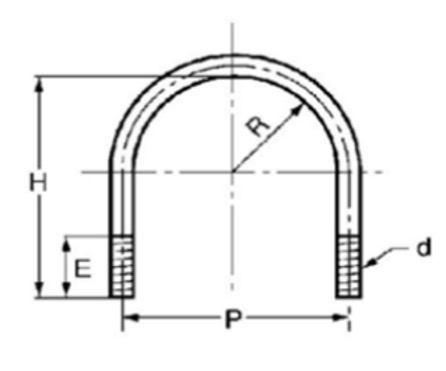

-   H: Length of U-bolt
-   P: Width of U-bolt
-   E: Length of thread
