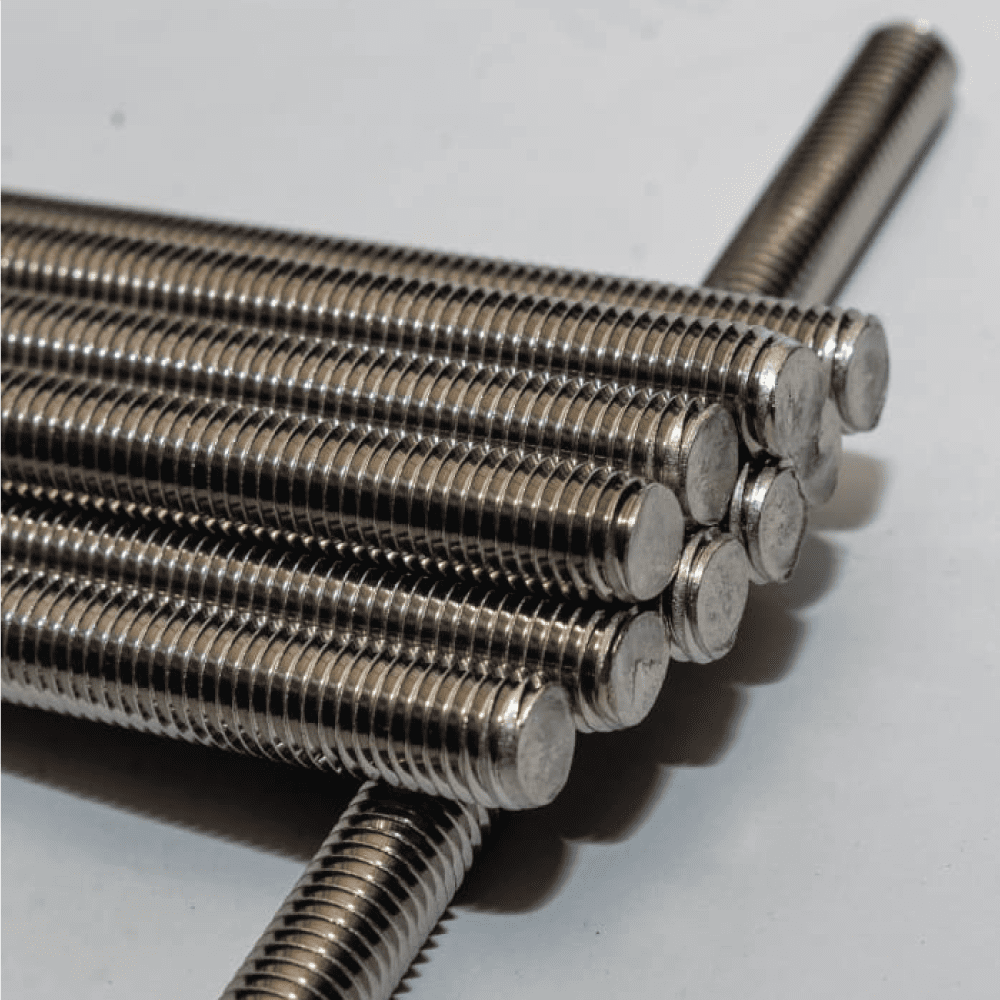

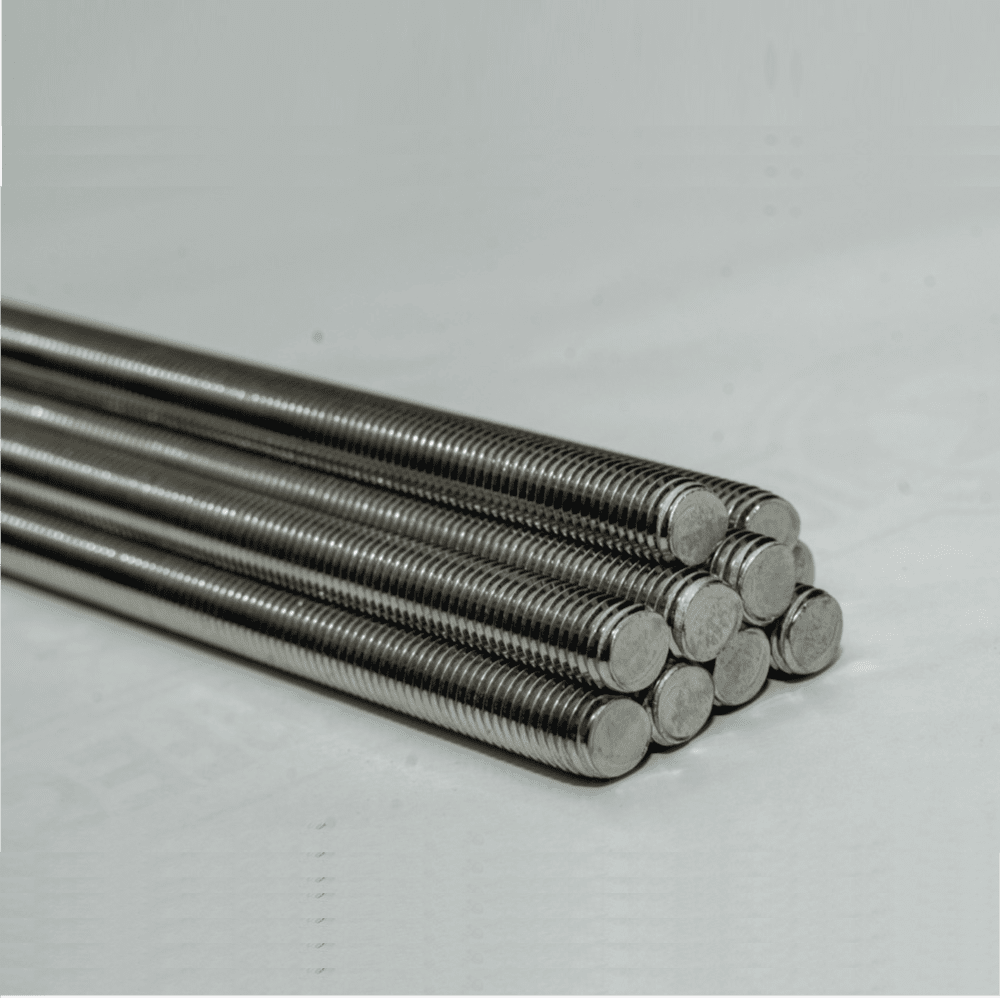

Material | SUS 304, SUS 310, SUS 316, SUS403 |
Durability | 4.8 and 6.8 (when required) |
Surface treatment | Clear |
Size | M6~M24 |
W5/16~W3/4 | |
Length | 30mm~4000mm |
Quality assurance, fast delivery | |
Competitive pricing | |
Contact | 0254 3893 111 |
M series | ||||
Size | Thread pitch | Tolerance | Weight per 1000mm | |
Min | Max | |||
M6 | 1 | 5.59 | 5.97 | 0.172 |
M8 | 1.25 | 7.55 | 7.85 | 0.309 |
M10 | 1.5 | 9.5 | 9.85 | 0.488 |
M12 | 1.75 | 11.6 | 11.85 | 0.713 |
M14 | 2 | 13.6 | 13.85 | 0.980 |
M16 | 2 | 15.5 | 15.8 | 1.309 |
M18 | 2.5 | 17.33 | 17.95 | 1.634 |
M20 | 2.5 | 19.33 | 19.95 | 2.073 |
M22 | 2.5 | 21.33 | 21.95 | 2.553 |
M24 | 3 | 23.2 | 23.95 | 2.958 |
W series | ||||
Size | Thread pitch | Tolerance | Weight per 1000mm | |
Min | Max | |||
W1/4 | 5.85 | 6.35 | ||
W5/16 | 1.41 | 7.5 | 7.75 | 0.288 |
W3/8 | 1.59 | 9.00 | 9.3 | 0.424 |
W1/2 | 2.12 | 12.2 | 12.65 | 0.781 |
W5/8 | 2.31 | 15.21 | 15.87 | 1.255 |
W3/4 | 2.54 | 18.34 | 19.05 | 1.842 |
W7/8 | 21.45 | 22.22 | 2.553 |
1. The product can be manufactured according to the required length (up to 3000 mm), eliminating the need for on-site cutting.
2. The product is customized, eliminating the need for connectors. Therefore, unnecessary connection costs can be reduced.
3. Since the surface already has a galvanized coating, the task of applying anti-rust paint is unnecessary.
4. The product is packaged and weighs approximately 20kg. It is bundled and delivered, making it easy to transport to various construction sites.
